Dakota Digital Odyssey Series II and Solarix instruments are fully backed by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you've come to expect from Dakota Digital!

Dual 3-3/8" Round Gauge kit includes:

ODYR-01-6 Odyssey Series II, Performance Speedometer/Tachometer
SLX-01-6 Odyssey Solarix, Performace Speedometer/ Tachometer

• Adjustable 199 MPH speedometer calibration is adjustable for nearly any gearing or tire size combination.
• User selectable MPH or KPH
• Compatible with both electronic and cable drive applications.
• Odometer with two resettable trip odometers.
• Resettable Miles to Service with warning (user settable countdown) and Hour meter.
• Quick response bar graph tachometer with adjustable shift point warning.
• Easy Tachometer calibration for a wide range of cylinder combinations from 1- 15 cylinders without the use and hassle of bulky coils.
• Gear Position Indicator compatable with Automatic transmissions with the optional sender GSS-2000 and Manual 3- 6 speed transmissions (no additional parts required).
• Adjustable shift point indicator with warning and output for external shift light (external shift light not included).
• Various indicators can also be displayed such as Turn Signal, High Beam, Neutral, Low Oil Pressure, Low Voltage and Security Indicators.
• "Wait to start" / "Check Engine" light.
• Several performance calculations include: 0- 60 time, high speed & high RPM recall, 1/4 mile time and speed.
• Easy push button calibration.

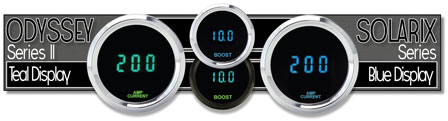

• ODYR Series II available with a Teal Display and choice of either Black or Chrome front bezel.
• SLX Solarix available with a Blue Display and choice of either Black or Chrome front bezel.
• Machined aluminum housing.

ODYR-40-1 Odyssey Series II, Fuel/ Volts/ Oil Pressure/ Water Temperature
SLX-40-1 Solarix Series, Fuel/ Volts/ Oil Pressure/ Water Temperature

• Water Temperature Sender: 1/8" with bushings for 1/4", 3/8" and 1/2" NPT openings.
• Oil Pressure Sender: 1/8" NPT.
• ODYR Series II available with a Teal Display and choice of either Black or Chrome front bezel.
• SLX Solarix available with a Blue Display and choice of either Black or Chrome front bezel.
• Machined aluminum housing.

*Now includes Water Temperature and Oil Pressure Senders.
**Fuel Sender sold separately.

Fuel Range: 0- 99%	Volts Range: 0- 17.0 VDC Resolution: 0.1 VDC
Oil Pressure Range: 0- 150 psi Resolution: 1 psi	Water Temperature Range: 0- 300°F or 0- 150°C Resolution: 1°F or 1°C
