Harley 4-1/2" Tank Mount Instrument Replacement, Pre-2004 Models

Home > > Harley 4-1/2" Tank Mount Instrument Replacement, Pre-2004 Models

Harley 4-1/2" Tank Mount Instrument Replacement, Pre-2004 Models
From Dakota Digital

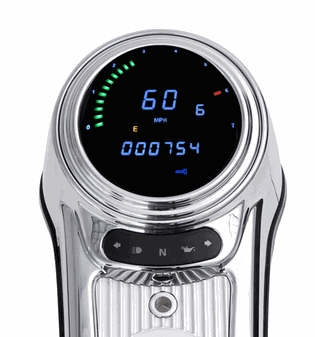

Speed/Tach/Gear Position for 4-1/2" tank mount dashes (Road King, Softail, Deuce, Fat Boy, Cross Bones).

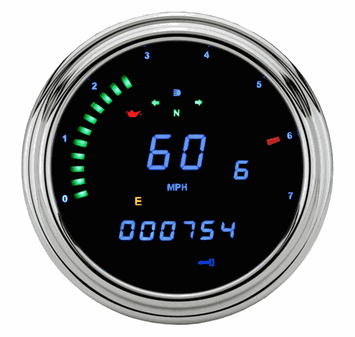

The all new MCL-2000 Series electronic instrumentation system offers a 255 MPH speedometer, wrap around tachometer with an adjustable shift point, odometer with dual resettable trip meters and a full complement of indicators to provide a complete information system. Designed to fit all single gauge tank mount applications on 2003 and older motorcycles. For 2004 and newer, please see HLY-2004 or MCL-2004

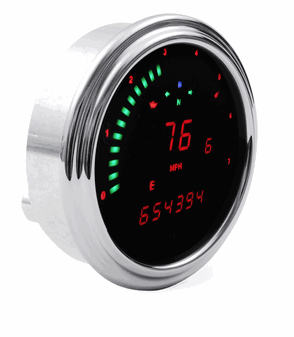

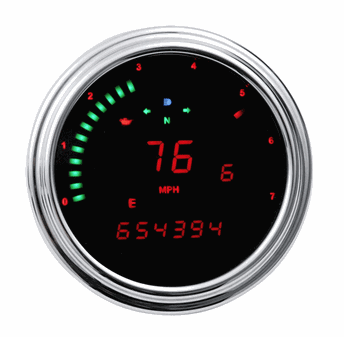

NOW AVAILABLE IN BLUE OR RED

255 MPH/ km/h selectable speedometer.
Optional Cable Driven Speed Adaptor SEN-6011 may be needed for 95 and older bikes. (Not included)
Wrap around adjustable tachometer with adjustable shift point, can also display in digital numeric readout.
Odometer with two resettable trip odometers.
Resettable Miles to Service with warning (user settable countdown) and hourmeter.
Clock (12 hour format)
Voltage readout with low voltage alert.
Oil/ Air Pressure sender sold separately, (SEN-1031, SEN-1032, SEN-1035)
Oil Temperature sender sold separately, (SEN-1043, SEN-1044)
7 Speed Gear Position Indicator compatible with 3-7 speed transmissions.
Various indicators can also be displayed such as Turn Signal, High Beam, Neutral, Low Oil Pressure, and Low Voltage
Automatic turn signal cancelling compatible.
"Wait to start" / Check Engine light.
Several performance calculations include: 0- 60 time, high speed & high RPM recall, 1/4 mile time and speed.
Chrome front bezel with non-glare scratch resistant lens.

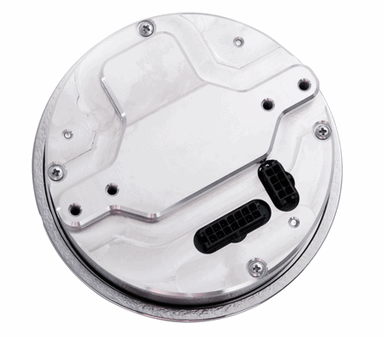

Machined aluminum housing.

* Limited Two Year Warranty!

***For 2004 and newer applications, use MCL-2004.

Case diameter measures 4-1/4", bezel diameter of 4-5/8"

Dakota Digital Instrument systems are normally shipped from the factory with "0" miles on the odometer. Odometer mileage is now user settable one time and must be done before the odometer reaches 100 miles. This can be done at the factory for a charge of $20 if not set before 100 miles, or if set incorrectly. Please contact Dakota Digital to arrange this service.
