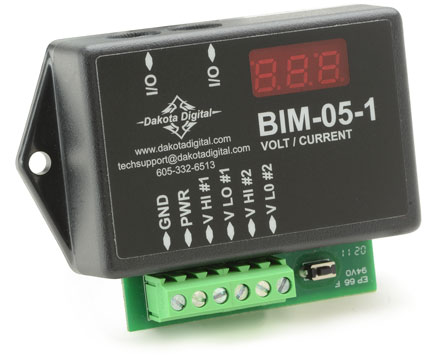

The BIM-05-1 allows the Dakota Digital VHX and VFD systems to display up to 2 additional Volt or 2 Current or a combination of 1 Volt and 1 Current readings.
| Display |
Sender
Part # |
Range |
Resolution |
Low
Warning |
High
Warning |
| VOLT |
N/A |
0- 50.0VDC |
0.1 |
0- 31 |
10- 41 |
| CURRENT |
SEN-20-3 |
0- 250A |
1 |
N/A |
5- 320 |
*The BIM-05-1 is designed to supply information to the VFD3 rev. G and VHX control box instrument systems only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of Expansion Modules.
