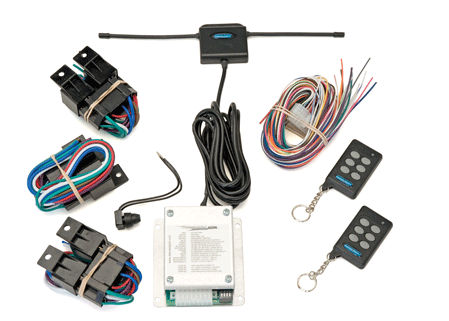

Ten-Function Remote Entry Systems
From Dakota Digital

The CMD-10K series remote controller offers:

Key Features: 10 function operation for:

All Harnesses and wire ends are fully assembled insuring easy installation.

Heavy duty 30 amp relays provided for greater reliability.

Code hopping technology for added security.

2- Six button transmitters for easier operation.

Park light flash for visual feedback during operation.

Ignition safety disables door and trunk release when engine is running.

Sealed switch included for emergency driver's door entry.

Controls driver side window up.

Controls driver side window down.

Controls passenger side window up.

Controls passenger side window down.

Remotely opens driver side door.

Remotely opens passenger side door.

Releases or raises trunk/ rear hatch.

Lowers trunk or rear hatch.

Raise auxiliary motor or releases auxiliary latch.

Lower auxiliary motor or programmable auxiliary channel can momentarily turn on/off or toggle on/off any electrical device.

*Limited Lifetime Warranty.
**Some functions may require additional RLY-1 or RLY-2 relay packs depending on desired configuration.

CMD-10K-1 Includes:

CMD-10K 10 function remote system.
Two PDR-1 12 lb push/pull actuators.
Two XMT-6 6 button remote transmitters.

The CMD-10K-1X includes:

CMD-10K 10 function remote system.
Two PDR-2 35 lb pulling solenoids.
Two XMT-6 6 button remote transmitters.

CMD-10K-2 Includes:
- CMD-10K 10 function remote system.
- Three PDR-1 12 lb push/pull actuators.
- Two XMT-6 6 button remote transmitters.

The CMD-10K-2X includes:

CMD-10K 10 function remote system.
Three PDR-2 35 lb pulling solenoids.
Two XMT-6 6 button remote transmitters.

CMD-10K-3 includes:
- CMD-10K 10 function remote system.
- PWL-1 Power Window Kit.
- Two PDR-1 12 lb push/pull actuators.
- Two XMT-6 6 button remote transmitter.
